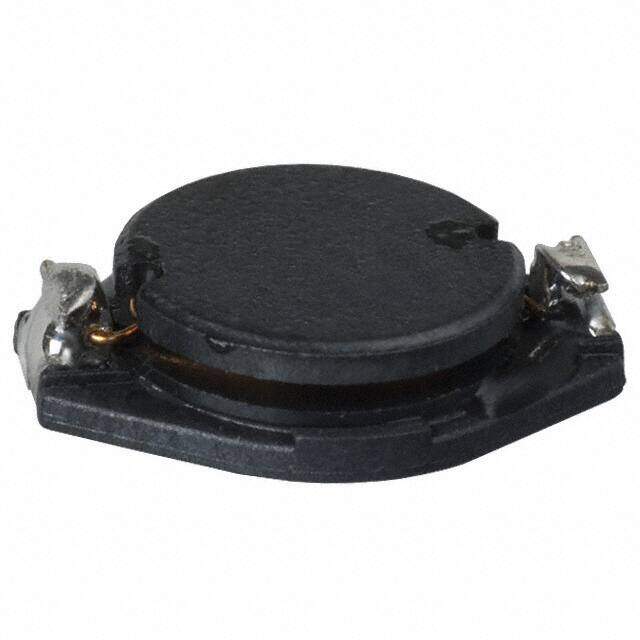

PM3308-680M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM3308 Nonstandard 0.512Lx0.374W 13.00mmx9.50mm 68muH
PDF
/
Inventory: 1864
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series PM3308
Size / Dimension 0.512Lx0.374W 13.00mmx9.50mm
Tolerance ±20%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Nickel/Copper (Sn/Ni/Cu)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 9.5mm
Current Rating 700mA
Military Standard Not
Lead Pitch 7.62mm
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 700mOhm Max
Max DC Current 900mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 5137
Inductance Tolerance 20%
DC Current 900mA
RMS Current (Irms) 700mA
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
