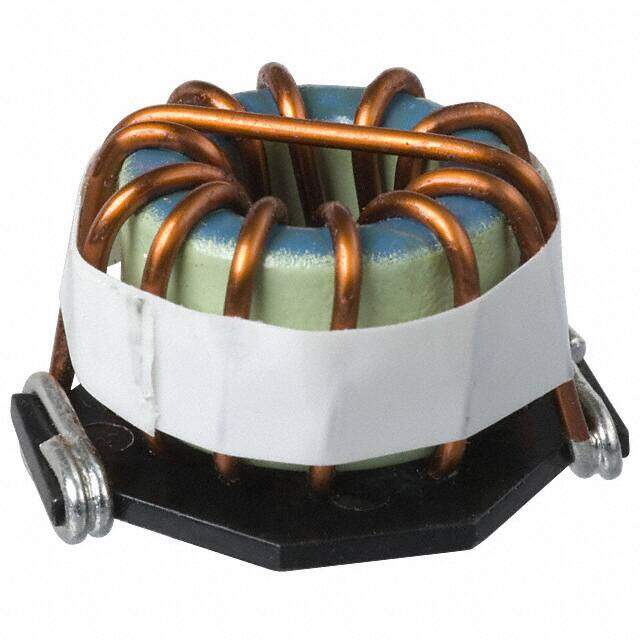

PM2120-820K-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM2120 Nonstandard 1.201Lx1.000W 30.50mmx25.40mm 82muH
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9656
≥1 USD $2.9656
≥10 USD $2.47896
≥100 USD $2.263712
≥500 USD $1.94033
≥1000 USD $1.778577
≥3000 USD $1.724694
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material - Core Iron
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series PM2120
Size / Dimension 1.201Lx1.000W 30.50mmx25.40mm
Tolerance ±10%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code 8504.50.80.00
Packing Method Box
Shielding NO
Number of Functions 1
Depth 25.4mm
Construction Epoxy Resin
Current Rating 6.4A
Military Standard Not
Inductance 82μH
Test Frequency 1kHz
DC Resistance (DCR) 32mOhm Max
Max DC Current 6.4A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Tolerance 10%
DC Current 6.4A
RMS Current (Irms) 6.4A
Dimensions
Height 22.1mm
Height Seated (Max) 0.870 22.10mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
