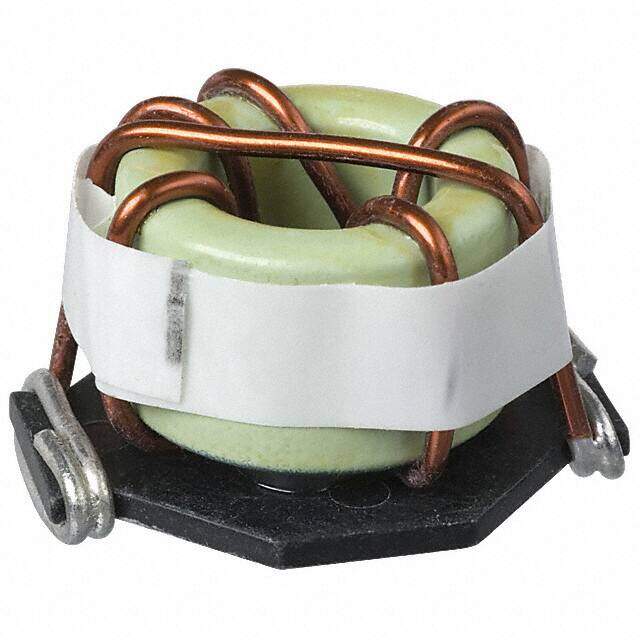

PM2120-1R0M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM2120 Nonstandard 1.201Lx1.000W 30.50mmx25.40mm 1muH
PDF
/
Inventory: 9807
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material - Core Iron
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series PM2120
Size / Dimension 1.201Lx1.000W 30.50mmx25.40mm
Tolerance ±20%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code 8504.50.80.00
Packing Method Box
Shielding NO
Number of Functions 1
Depth 25.4mm
Construction Epoxy Resin
Current Rating 25.4A
Military Standard Not
Inductance 1μH
Test Frequency 1kHz
DC Resistance (DCR) 2mOhm Max
Max DC Current 25.4A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Tolerance 20%
DC Current 25.4A
Dimensions
Height 20.83mm
Height Seated (Max) 0.820 20.83mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
