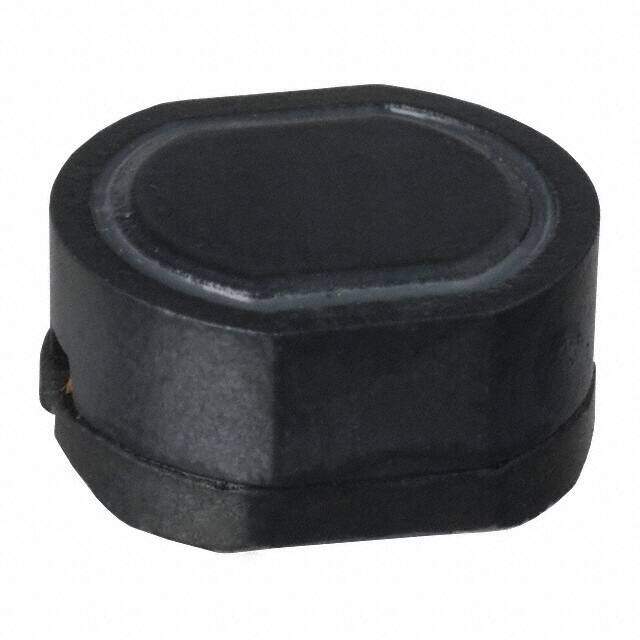

PM105S-331M image
Favorite
PM105S-331M image
Favorite

PM105S-331M

Bourns Inc.
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PM105S Nonstandard 0.394Lx0.362W 10.00mmx9.20mm 330muH
PDF
/
Inventory: 5504
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Height Seated (Max) 0.217 5.50mm
Height 5.8mm
Diameter 9.8mm

Technical

DC Current 440mA
Frequency - Self Resonant 4MHz
Max DC Current 1.5A
DC Resistance (DCR) 1.03Ohm Max
Test Frequency 1kHz
Inductance 330μH
Military Standard Not
Current Rating 440mA
Reach Compliance Code unknown
Depth 9.6mm
Shielding Shielded
HTS Code 8504.50.80.00
Resistance 1.03Ohm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.394Lx0.362W 10.00mmx9.20mm
Series PM105S
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -30°C~100°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
