PM105S-151M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PM105S Nonstandard 0.394Lx0.362W 10.00mmx9.20mm 150muH
PDF
/
Inventory: 2348
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -30°C~100°C
Packaging Tape & Reel (TR)
Published 2002
Series PM105S
Size / Dimension 0.394Lx0.362W 10.00mmx9.20mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 100°C
Min Operating Temperature -30°C
Composition Wirewound
Current Rating (Amps) 650mA
Shielding Shielded
Current Rating 650mA
Base Part Number PM105S
Inductance 150μH
Test Frequency 1kHz
DC Resistance (DCR) 450mOhm Max
Max DC Current 780mA
Frequency - Self Resonant 6MHz
Inductance Frequency - Test 1kHz
Dimensions
Height 5mm
Height Seated (Max) 0.217 5.50mm
Length 10.0076mm
Width 9.1948mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead

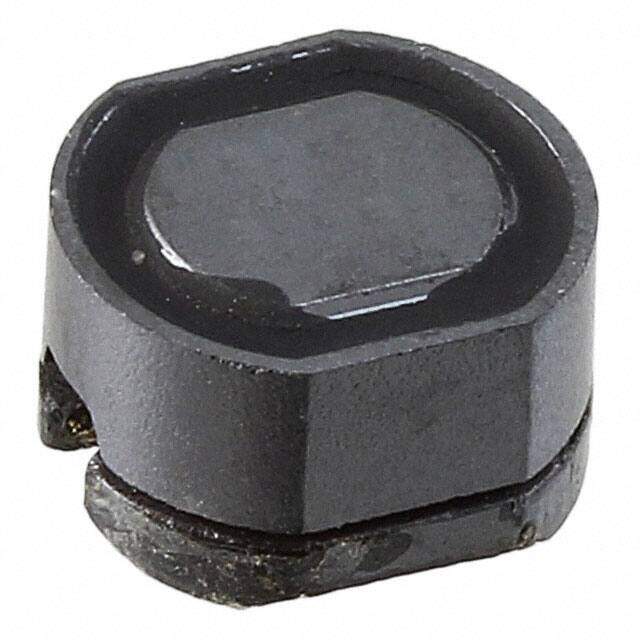

Alternative Model
