PM104SH-7R0-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

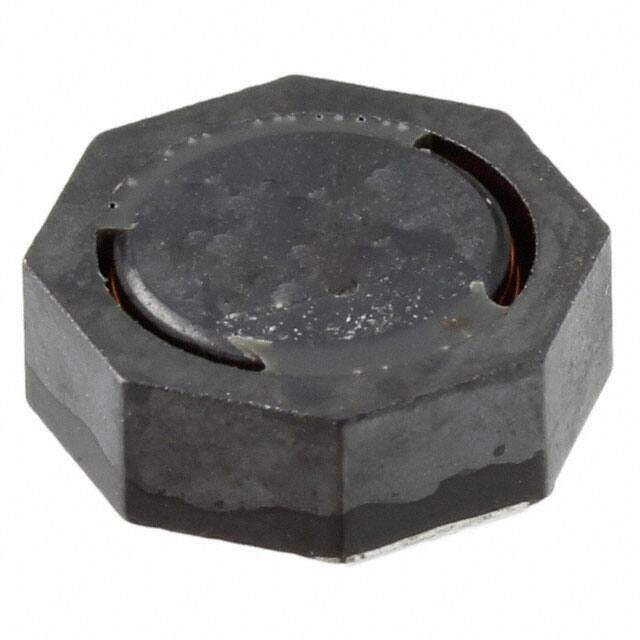

PM104SH Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 7muH
PDF
/
Inventory: 8336
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.161 4.10mm
Height 3.8mm
Technical
DC Current 3.9A
Case/Size Code 3939
Current - Saturation 4A
Inductance Frequency - Test 7.96MHz
Quality Factor-Min (at L-nom) 13
Q @ Freq 13 @ 7.96MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 36MHz
Max DC Current 3.9A
DC Resistance (DCR) 35mOhm Max
Test Frequency 100kHz
Inductance 7μH
Military Standard Not
Depth 10.3mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Series PM104SH
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
