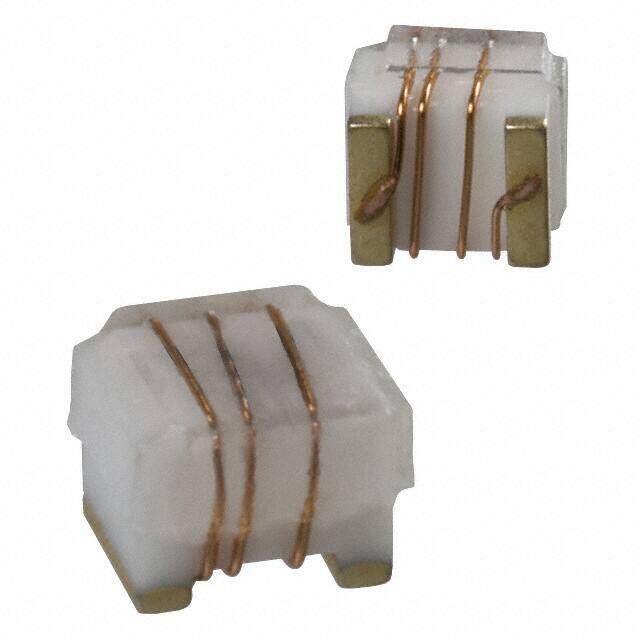

PM1008-100K-RC image
Favorite
PM1008-100K-RC image
Favorite

PM1008-100K-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description PM1008 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 10muH
PDF
/
Inventory: 5744
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.071 1.80mm
Height 1.6mm

Technical

Special Feature Q MEASURED AT 7.9 MHZ
Q Factor 20
Quality Factor-Min (at L-nom) 18
Q @ Freq 18 @ 7.9MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 40MHz
Max DC Current 200mA
DC Resistance (DCR) 4.2Ohm
Test Frequency 2.5MHz
Inductance 10μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 200mA
Construction Chip
Depth 2.2mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Tolerance ±10%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series PM1008
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ceramic
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
