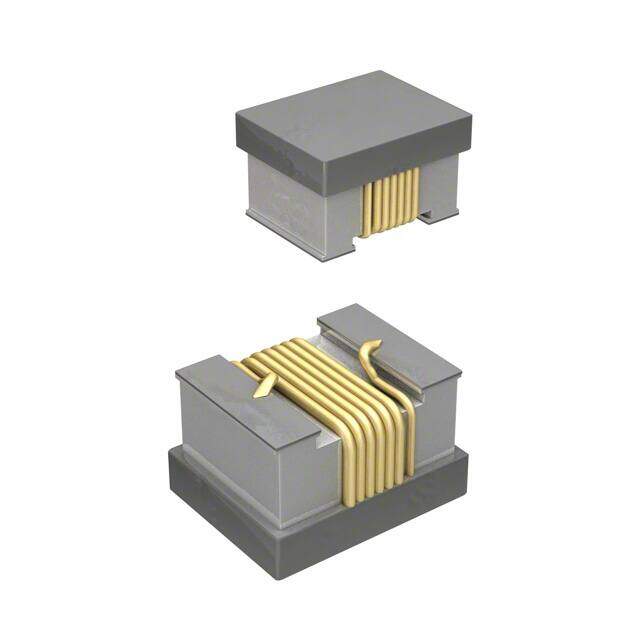

CW252016-2R2J
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CW252016 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.306254
≥1 USD $0.306254
≥10 USD $0.288912
≥100 USD $0.27256
≥500 USD $0.25713
≥1000 USD $0.24258
Inventory: 4571
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Terminal Shape ONE SURFACE
Number of Pins 2
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Conductor Material Copper
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2008
Series CW252016
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±5%
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 2.2mm
Construction Chip
Current Rating 250mA
Military Standard Not
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 2.2μH
Test Frequency 7.9MHz
DC Resistance (DCR) 2.8Ohm Max
Max DC Current 250mA
Frequency - Self Resonant 160MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 25 @ 7.9MHz
Quality Factor-Min (at L-nom) 25
Q Factor 25
Inductance Tolerance 5%
DC Current 250mA
Dimensions
Height 1.5748mm
Height Seated (Max) 0.071 1.80mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
