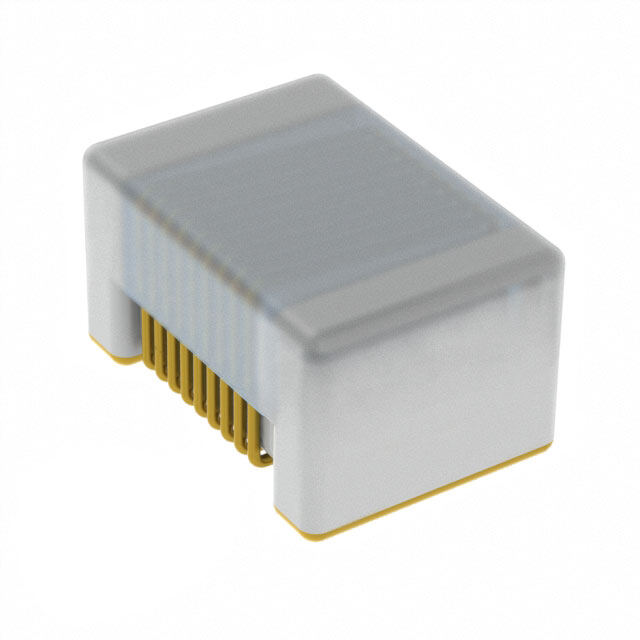

CW161009A-R33J
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CW161009A 0603 (1608Metric) 0.065Lx0.045W 1.65mmx1.15mm 330nH
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.1848
≥1 USD $0.1848
≥10 USD $0.14784
≥100 USD $0.136576
≥500 USD $0.125136
≥1000 USD $0.110352
≥3000 USD $0.106938
Inventory: 267
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ceramic
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series CW161009A
Size / Dimension 0.065Lx0.045W 1.65mmx1.15mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Current Rating (Amps) 150mA
Packing Method TR, Embossed, 7 Inch
Shielding NO
Number of Functions 1
Construction Rectangular
Inductance 330nH
Test Frequency 100MHz
DC Resistance (DCR) 2.3Ohm Max
Frequency - Self Resonant 500MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 25 @ 100MHz
Quality Factor-Min (at L-nom) 25
Inductance Frequency - Test 100MHz
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 0604
Rated Current-Max 0.15A
Dimensions
Height Seated (Max) 0.043 1.10mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
