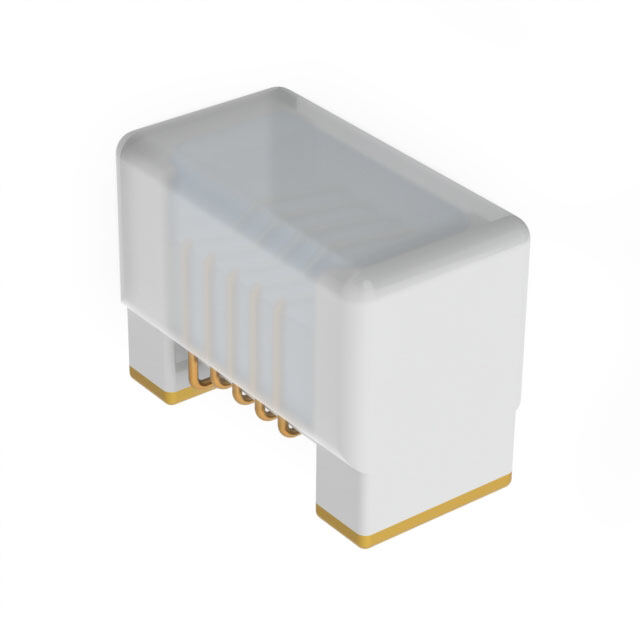

CW105550A-82NJ
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CW105550A 0402 (1005Metric) 0.039Lx0.022W 1.00mmx0.55mm 82nH
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.1848
≥1 USD $0.1848
≥10 USD $0.14784
≥100 USD $0.136576
≥500 USD $0.125136
≥1000 USD $0.110352
≥3000 USD $0.106938
Inventory: 145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ceramic
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series CW105550A
Size / Dimension 0.039Lx0.022W 1.00mmx0.55mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Current Rating (Amps) 150mA
Packing Method TR, Embossed, 7 Inch
Shielding Unshielded
Number of Functions 1
Construction Rectangular
Inductance 82nH
Test Frequency 150MHz
DC Resistance (DCR) 1.25Ohm Max
Frequency - Self Resonant 1.5GHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 20 @ 150MHz
Quality Factor-Min (at L-nom) 20
Inductance Frequency - Test 150MHz
Inductor Type GENERAL PURPOSE INDUCTOR
Rated Current-Max 0.15A
Dimensions
Height Seated (Max) 0.024 0.60mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
