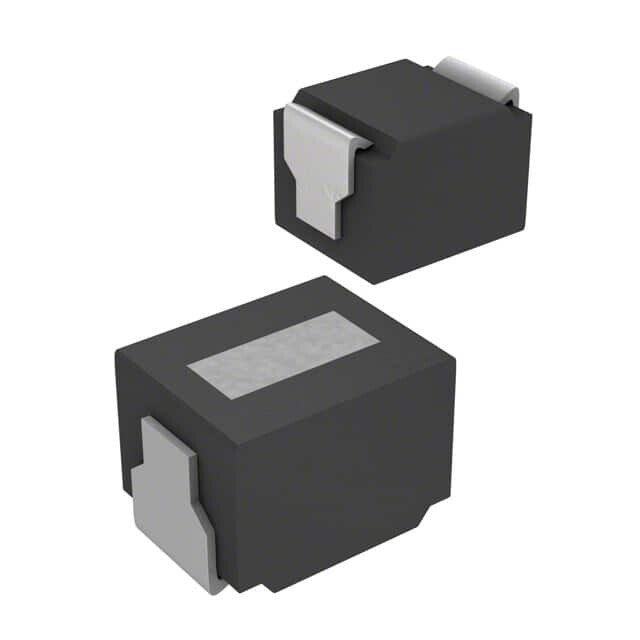

CM252016-R82ML
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CM252016 Nonstandard 0.098Lx0.079W 2.50mmx2.00mm 820nH
PDF
/
Inventory: 5447
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -20°C~100°C
Packaging Tape & Reel (TR)
Published 2001
Series CM252016
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±20%
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 1.4Ohm
Terminal Finish Tin/Copper (Sn99.3Cu0.7)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 2mm
Construction Chip
Current Rating 130mA
Military Standard Not
Inductance 820nH
Test Frequency 25.2MHz
DC Resistance (DCR) 1.4Ohm Max
Max DC Current 130mA
Frequency - Self Resonant 125MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 25 @ 25.2MHz
Quality Factor-Min (at L-nom) 25
Q Factor 25
Case/Size Code 1008
DC Current 130mA
Dimensions
Height 1.6002mm
Height Seated (Max) 0.063 1.60mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
