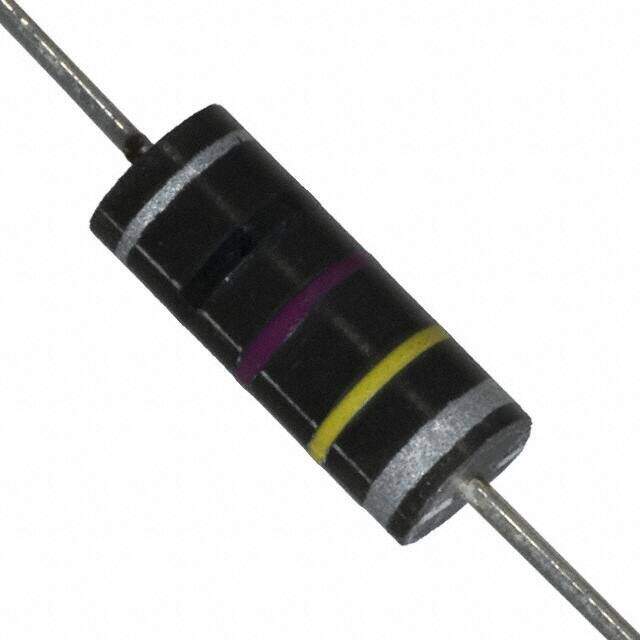

9250A-473-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
9250A Axial 0.162Diax0.410L 4.11mmx10.41mm 47muH
PDF
/
Buying Options
Total Price: USD $1.75
Unit Price: USD $1.7512
≥1 USD $1.7512
≥10 USD $1.48984
≥100 USD $0.935018
≥500 USD $0.876577
≥1000 USD $0.818136
≥3000 USD $0.777234
Inventory: 1015
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series 9250A
Size / Dimension 0.162Diax0.410L 4.11mmx10.41mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Molded
Resistance 2.11Ohm
Composition Wirewound
Shielding YES
Number of Functions 1
Construction Cylindrical
Current Rating 195mA
Military Standard Not
Lead Diameter 635 μm
Inductance 47μH
Test Frequency 2.5MHz
DC Resistance (DCR) 2.11Ohm Max
Max DC Current 195mA
Frequency - Self Resonant 27MHz
Inductor Application RF INDUCTOR
Q @ Freq 50 @ 2.5MHz
Quality Factor-Min (at L-nom) 50
Current - Saturation 175mA
Q Factor 50
Inductance Tolerance 10%
DC Current 195mA
Dimensions
Diameter 4.11mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
