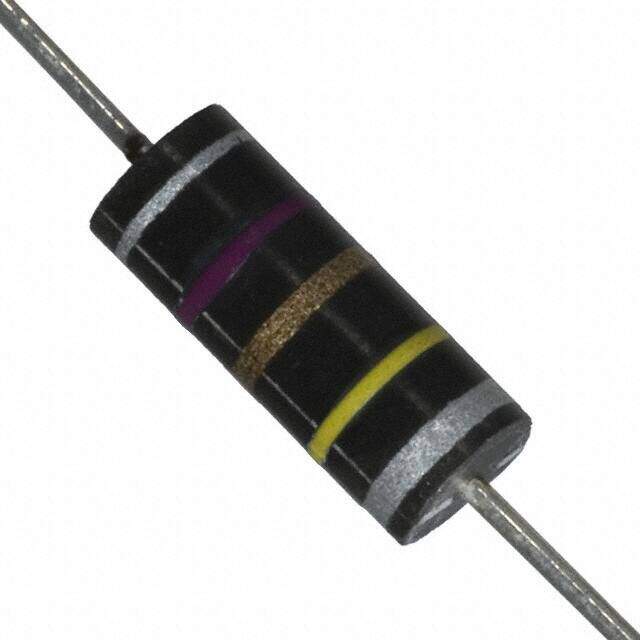

9250A-472-RC image
Favorite
9250A-472-RC image
Favorite

9250A-472-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 9250A Axial 0.162Diax0.410L 4.11mmx10.41mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.0472
≥100 USD $0.965536
≥500 USD $0.862752
≥1000 USD $0.723272
Inventory: 238
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Diameter 4.36mm

Technical

DC Current 380mA
Inductance Tolerance 10%
Q Factor 44
Quality Factor-Min (at L-nom) 44
Q @ Freq 44 @ 7.9MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 70MHz
Max DC Current 380mA
DC Resistance (DCR) 550mOhm Max
Test Frequency 7.9MHz
Inductance 4.7μH
Military Standard Not
Current Rating 380mA
Construction Cylindrical
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Composition Wirewound
Type Molded
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.162Diax0.410L 4.11mmx10.41mm
Series 9250A
Published 2011
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 18 Weeks
