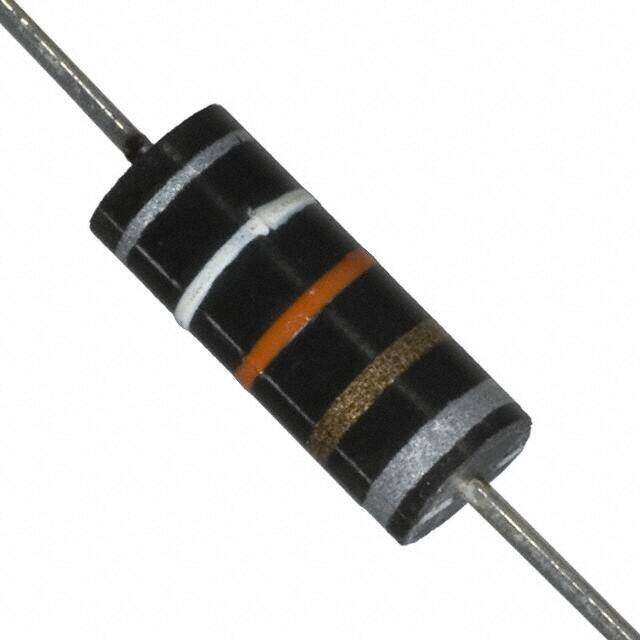

9250A-391-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
9250A Axial 0.162Diax0.410L 4.11mmx10.41mm 390nH
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.0472
≥100 USD $0.965536
≥500 USD $0.862752
≥1000 USD $0.723272
Inventory: 976
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2009
Series 9250A
Size / Dimension 0.162Diax0.410L 4.11mmx10.41mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Molded
Composition Wirewound
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Construction Cylindrical
Current Rating 670mA
Military Standard Not
Lead Length 25.4mm
Lead Diameter 635 μm
Inductance 390nH
Test Frequency 25MHz
DC Resistance (DCR) 180mOhm Max
Max DC Current 670mA
Frequency - Self Resonant 250MHz
Inductor Application RF INDUCTOR
Q @ Freq 44 @ 25MHz
Quality Factor-Min (at L-nom) 44
Q Factor 44
DC Current 670mA
Dimensions
Diameter 4.11mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
