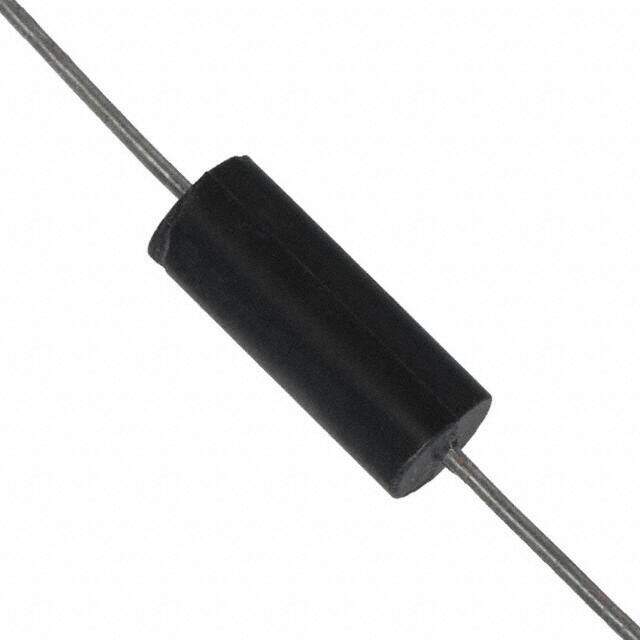

9250-824
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
9250 Axial 0.162Diax0.410L 4.11mmx10.41mm 820muH
PDF
/
Buying Options
Total Price: USD $2.19
Unit Price: USD $2.185979
≥1 USD $2.185979
≥200 USD $0.873079
≥500 USD $0.842882
≥1000 USD $0.82844
Inventory: 7080
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Diameter 4.1148mm
Technical
Q Factor 60
Current - Saturation 45mA
Quality Factor-Min (at L-nom) 60
Q @ Freq 60 @ 790kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 4.2MHz
Max DC Current 80mA
DC Resistance (DCR) 13Ohm Max
Test Frequency 790kHz
Inductance 820μH
Lead Length 25.4mm
Current Rating 80mA
Construction Flame Retardant Coat
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±10%
Size / Dimension 0.162Diax0.410L 4.11mmx10.41mm
Series 9250
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole

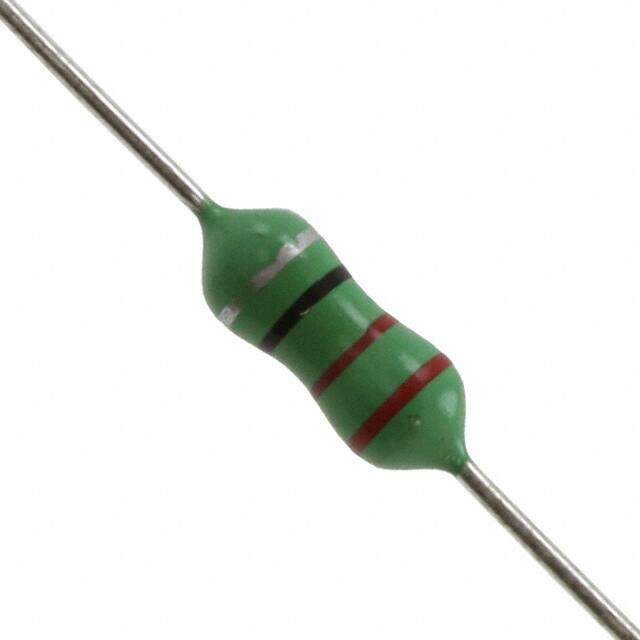

Alternative Model
