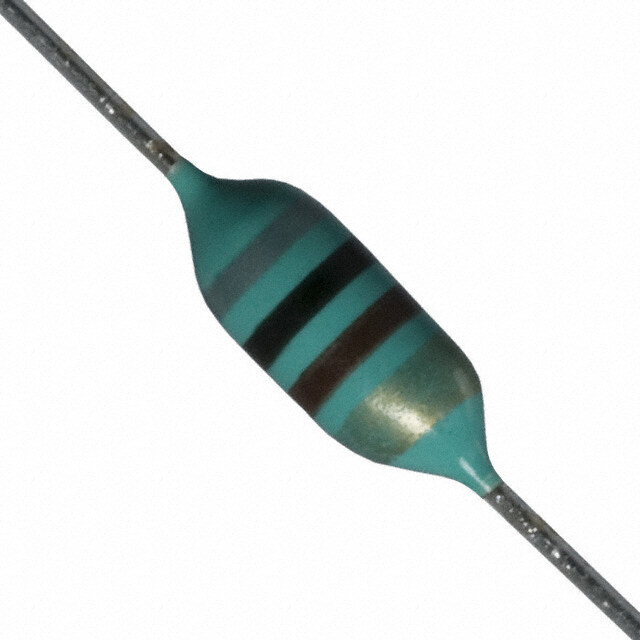

8230-94-RC image
Favorite
8230-94-RC image
Favorite

8230-94-RC

Bourns, Inc.
RoHS
/
Package /
Category Inductors, Coils, Chokes / Fixed Inductors
Description 100nH 10% 10%
PDF
/
Buying Options
Total Price: USD $3.2
Unit Price: USD $3.203563
≥1 USD $3.203563
≥10 USD $3.022231
≥100 USD $2.851163
≥500 USD $2.689778
≥1000 USD $2.537523
Inventory: 1198
Minimum: 1
-
+

Technical Details

Dimensions

Length 7.62mm
Diameter 3.05mm

Technical

DC Current 1.1A
Inductance-Nom (L) 0.1 μH
Inductance Tolerance 10%
DC Resistance (DCR) - Parallel 70mOhm
Q Factor 40
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 40
Lead/Base Style Axial
Inductor Application DC-DC CONVERTER
Frequency - Self Resonant 690MHz
Max DC Current 1.1A
Test Frequency 25MHz
Inductance 100 nH
Lead Length 66.5mm
Military Standard Not
Current Rating 1.1A
Construction Tubular
Number of Functions 1
Shielding Unshielded
HTS Code 8504.50.80.00
Min Operating Temperature -55°C
Max Operating Temperature 105°C
ECCN Code EAR99
Number of Terminations 2
Part Status Active
Pbfree Code yes
Tolerance 10%
Published 2007
Packaging Bulk

Physical

Shape/Size Description TUBULAR PACKAGE
Material - Core Phenolic
Number of Pins 2
Terminal Shape WIRE
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 11 Weeks

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
