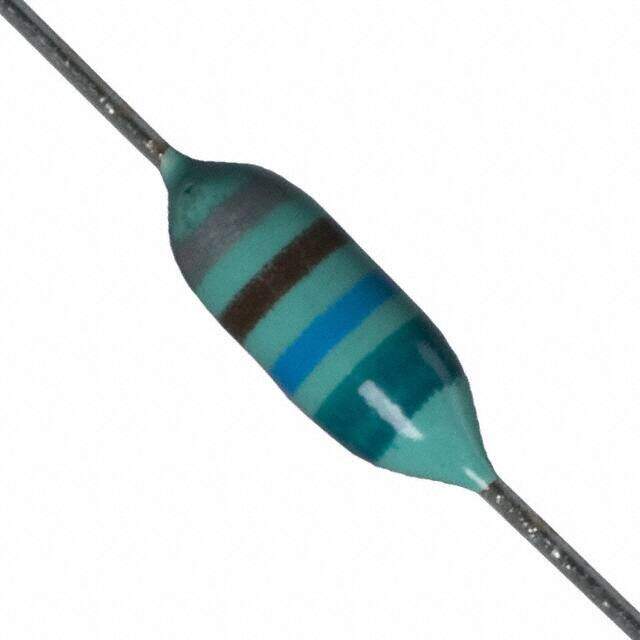

8230-86
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 560muH
PDF
/
Buying Options
Total Price: USD $2.18
Unit Price: USD $2.175475
≥1 USD $2.175475
≥200 USD $0.86914
≥500 USD $0.838943
≥1000 USD $0.825814
Inventory: 5969
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Diameter 3.05mm
Technical
Q Factor 30
Quality Factor-Min (at L-nom) 30
Q @ Freq 30 @ 790kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 5MHz
Max DC Current 48mA
DC Resistance (DCR) 46Ohm Max
Test Frequency 790kHz
Inductance 560μH
Current Rating 48mA
Construction Epoxy Coated
Number of Functions 1
Shielding Unshielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±10%
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Series 8230
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
