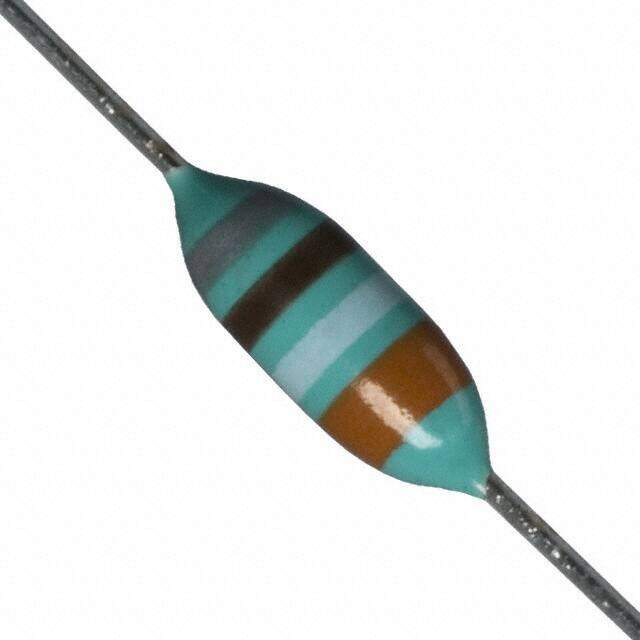

8230-82 image
Favorite
8230-82 image
Favorite

8230-82

Bourns Inc.
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 390muH
PDF
/
Inventory: 6615
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Diameter 3.05mm

Technical

Q Factor 30
Quality Factor-Min (at L-nom) 30
Q @ Freq 30 @ 790kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 6.6MHz
Max DC Current 55mA
DC Resistance (DCR) 35Ohm Max
Test Frequency 790kHz
Inductance 390μH
Lead Length 66.5mm
Current Rating 55mA
Construction Epoxy Coated
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±10%
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Series 8230
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
