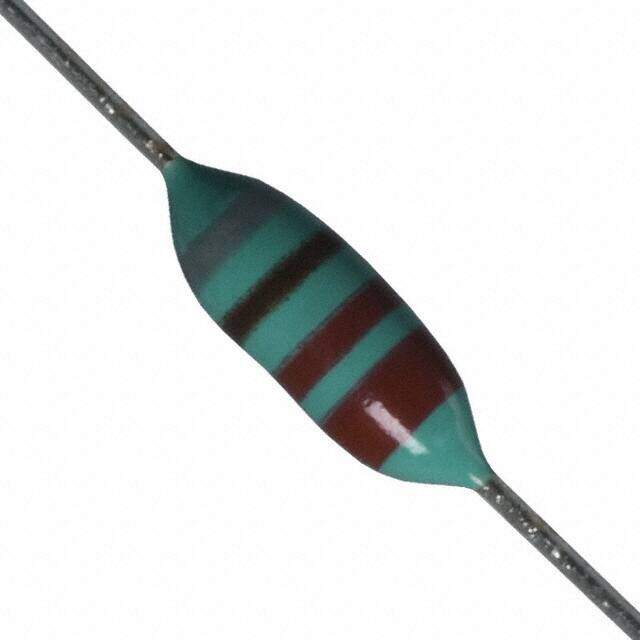

8230-76
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 220muH
PDF
/
Inventory: 9949
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2006
Series 8230
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Tolerance ±10%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
Resistance 21Ohm
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 73mA
Military Standard Not
Inductance 220μH
Test Frequency 790kHz
DC Resistance (DCR) 21Ohm Max
Max DC Current 73mA
Frequency - Self Resonant 9MHz
Q @ Freq 30 @ 790kHz
Q Factor 30
DC Current 73mA
Dimensions
Diameter 3.05mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
