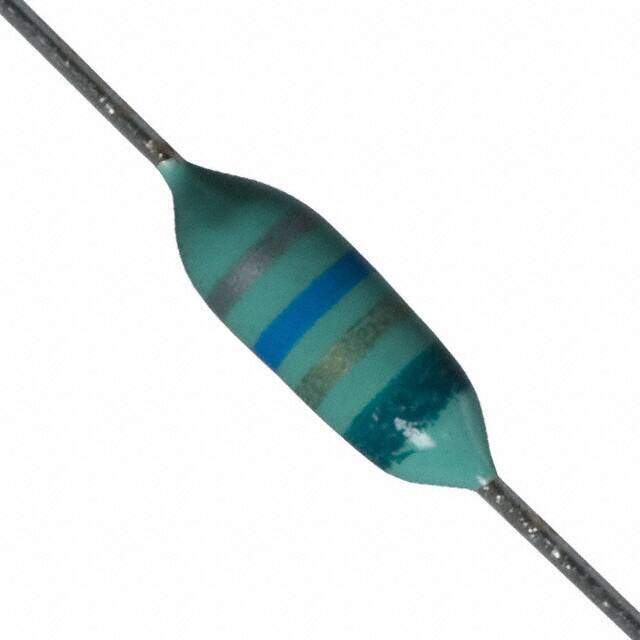

8230-38-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 5.6muH
PDF
/
Buying Options
Total Price: USD $1.75
Unit Price: USD $1.7512
≥1 USD $1.7512
≥10 USD $1.48984
≥100 USD $1.373152
≥500 USD $1.227248
≥1000 USD $1.022648
≥3000 USD $0.99345
Inventory: 804
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series 8230
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Resistance 1.8Ohm
Shielding NO
Number of Functions 1
Construction Tubular
Current Rating 260mA
Military Standard Not
Inductance 5.6μH
Test Frequency 7.9MHz
DC Resistance (DCR) 1.8Ohm Max
Max DC Current 260mA
Frequency - Self Resonant 68MHz
Inductor Application DC-DC CONVERTER
Q @ Freq 50 @ 7.9MHz
Quality Factor-Min (at L-nom) 50
Q Factor 50
Inductance Tolerance 10%
DC Current 260mA
Dimensions
Diameter 3.05mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
