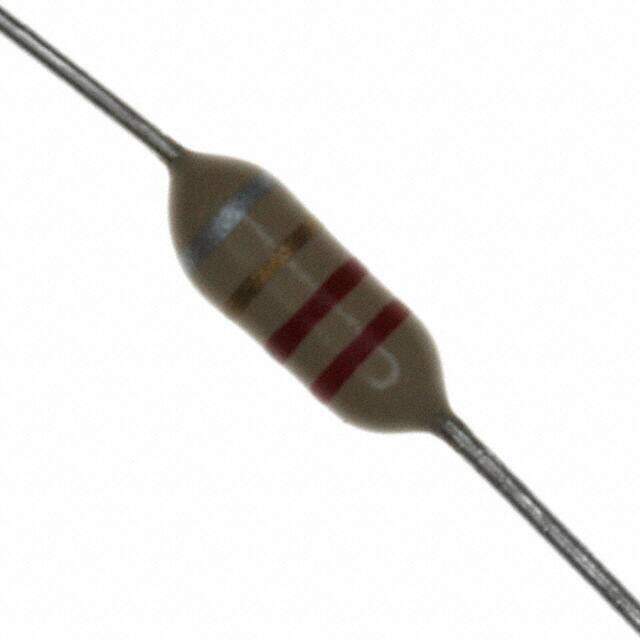

8230-28-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.0472
≥100 USD $0.965536
≥500 USD $0.862752
≥1000 USD $0.723272
Inventory: 212
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series 8230
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Tubular
Current Rating 550mA
Military Standard Not
Lead Length 66.5mm
Inductance 2.2μH
Test Frequency 7.9MHz
DC Resistance (DCR) 400mOhm Max
Max DC Current 550mA
Frequency - Self Resonant 115MHz
Inductor Application DC-DC CONVERTER
Q @ Freq 30 @ 7.9MHz
Quality Factor-Min (at L-nom) 30
Q Factor 30
Inductance Tolerance 10%
DC Current 550mA
Dimensions
Diameter 3.05mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
