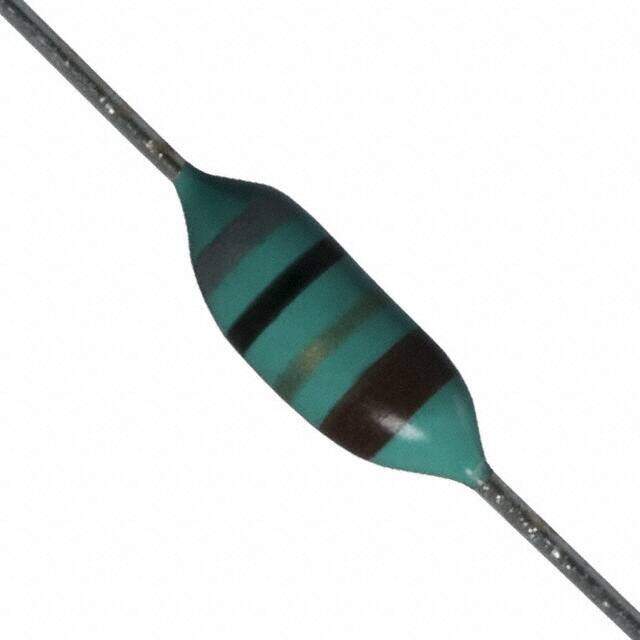

8230-20 image
Favorite
8230-20 image
Favorite

8230-20

Bourns Inc.
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 1muH
PDF
/
Inventory: 8365
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Phenolic
Shape/Size Description TUBULAR PACKAGE

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2006
Series 8230
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Tolerance ±10%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Epoxy Coated
Current Rating 350mA
Lead Length 33.27mm
Inductance 1μH
Test Frequency 25MHz
DC Resistance (DCR) 1Ohm Max
Max DC Current 350mA
Frequency - Self Resonant 230MHz
Inductor Application RF INDUCTOR
Q @ Freq 25 @ 25MHz
Quality Factor-Min (at L-nom) 25
Q Factor 25

Dimensions

Diameter 3.05mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
