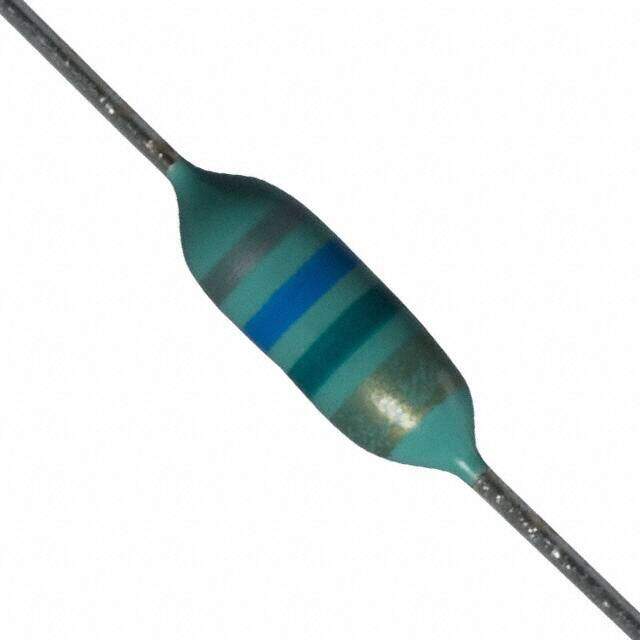

8230-14
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 560nH
PDF
/
Inventory: 1962
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Phenolic
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2006
Series 8230
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Tolerance ±10%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Epoxy Coated
Current Rating 495mA
Inductance 560nH
Test Frequency 25MHz
DC Resistance (DCR) 500mOhm Max
Max DC Current 495mA
Frequency - Self Resonant 300MHz
Inductor Application RF INDUCTOR
Q @ Freq 30 @ 25MHz
Quality Factor-Min (at L-nom) 30
Q Factor 30
Dimensions
Diameter 3.05mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
