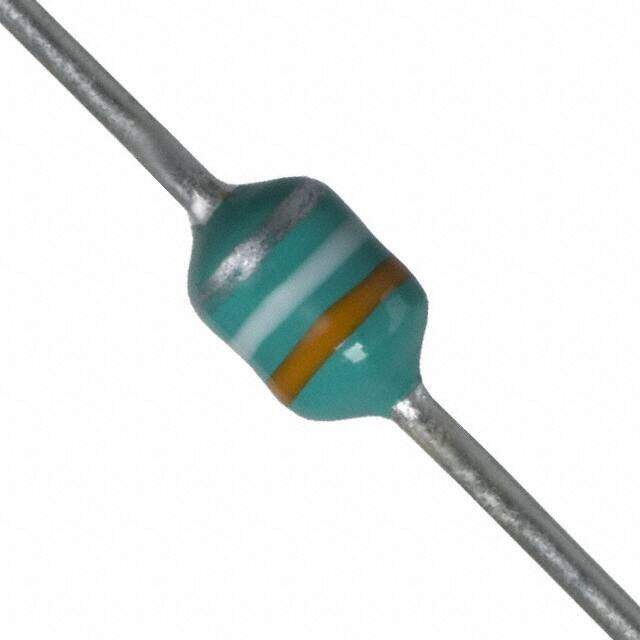

79FR39M-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
79F Axial 0.100Diax0.160L 2.54mmx4.06mm 390nH
PDF
/
Inventory: 2253
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Diameter 2.54mm
Technical
Rated Current-Max 0.35A
Inductance Frequency - Test 25MHz
Quality Factor-Min (at L-nom) 35
Q @ Freq 35 @ 25MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 150MHz
DC Resistance (DCR) 510mOhm Max
Test Frequency 25MHz
Inductance 390nH
Lead Length 25.4mm
Current Rating 350mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.100Diax0.160L 2.54mmx4.06mm
Series 79F
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
