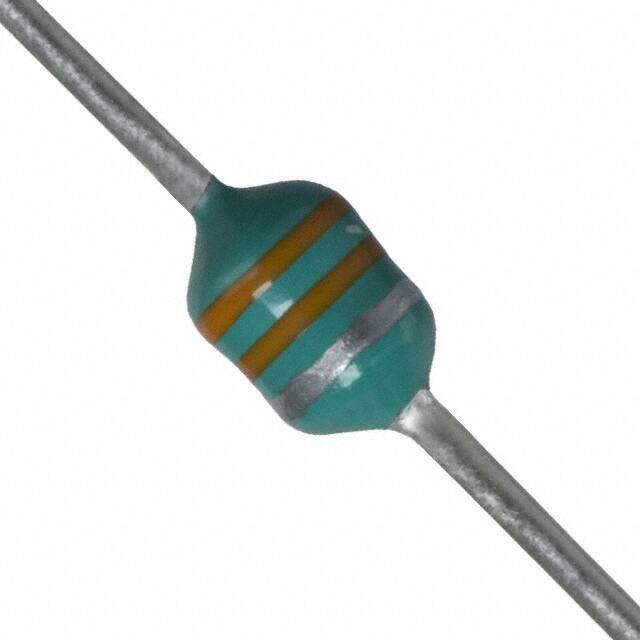

79FR33M-TR-RC image
Favorite
79FR33M-TR-RC image
Favorite

79FR33M-TR-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 79F Axial 0.100Diax0.160L 2.54mmx4.06mm 330nH
PDF
/
Inventory: 8461
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Diameter 2.54mm

Technical

DC Current 370mA
Q Factor 35
Quality Factor-Min (at L-nom) 35
Q @ Freq 35 @ 25MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 150MHz
Max DC Current 370mA
DC Resistance (DCR) 480mOhm Max
Test Frequency 25MHz
Inductance 330nH
Lead Length 25.4mm
Military Standard Not
Current Rating 370mA
Construction Conformal Coated
Number of Functions 1
Shielding NO
Packing Method Ammo Pack
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.100Diax0.160L 2.54mmx4.06mm
Series 79F
Published 2011
Packaging Tape & Box (TB)
Operating Temperature -55°C~105°C

Physical

Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
