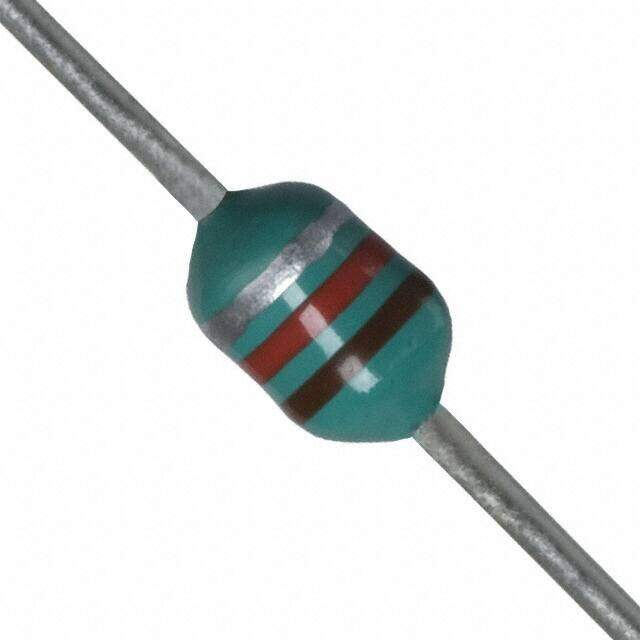

79FR12M
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
79F Axial 0.100Diax0.160L 2.54mmx4.06mm 120nH
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.220147
≥1 USD $0.220147
≥200 USD $0.087847
≥500 USD $0.084905
≥1000 USD $0.083461
Inventory: 3550
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2004
Series 79F
Size / Dimension 0.100Diax0.160L 2.54mmx4.06mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method Ammo Pack
Shielding NO
Number of Functions 1
Construction Conformal Coated
Current Rating 660mA
Lead Length 25.4mm
Inductance 120nH
Test Frequency 25MHz
DC Resistance (DCR) 200mOhm Max
Frequency - Self Resonant 300MHz
Inductor Application RF INDUCTOR
Q @ Freq 35 @ 25MHz
Quality Factor-Min (at L-nom) 35
Inductance Frequency - Test 25MHz
Rated Current-Max 0.66A
Dimensions
Diameter 2.54mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
