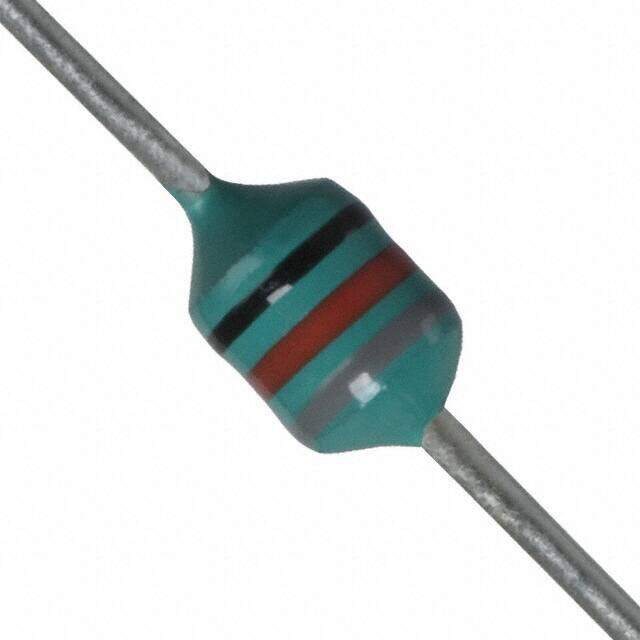

79F820K-TR-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
79F Axial 0.100Diax0.160L 2.54mmx4.06mm 82muH
PDF
/
Inventory: 7071
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Lead Diameter 0.51 mm
Lead Length 25.4mm
Military Standard Not
Current Rating 46mA
Construction Conformal Coated
Number of Functions 1
Shielding NO
Packing Method Ammo Pack
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.100Diax0.160L 2.54mmx4.06mm
Series 79F
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
DC Current 46mA
Quality Factor-Min (at L-nom) 40
Q @ Freq 40 @ 2.5MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 9.5MHz
Max DC Current 46mA
DC Resistance (DCR) 11Ohm Max
Test Frequency 2.5MHz
Inductance 82μH
Physical
Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
Compliance
RoHS Status ROHS3 Compliant
