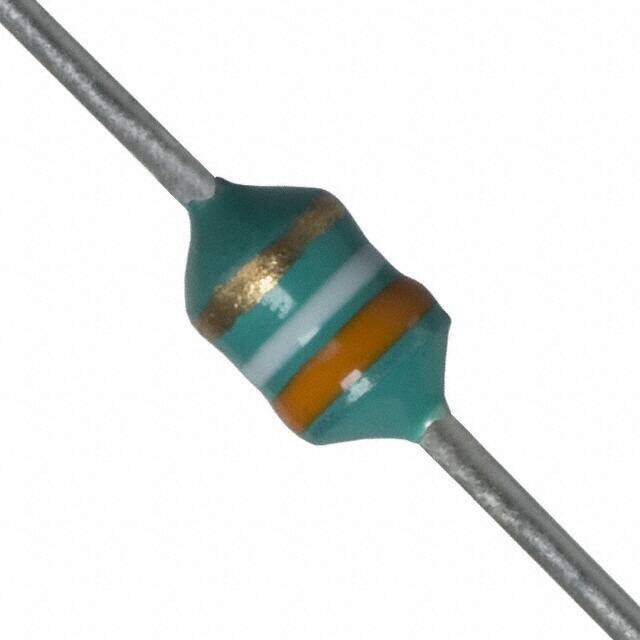

79F3R9K-TR-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
79F Axial 0.100Diax0.160L 2.54mmx4.06mm 3.9muH
PDF
/
Inventory: 971
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2011
Series 79F
Size / Dimension 0.100Diax0.160L 2.54mmx4.06mm
Tolerance ±10%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method Ammo Pack
Shielding NO
Number of Functions 1
Construction Conformal Coated
Current Rating 200mA
Military Standard Not
Lead Length 25.4mm
Inductance 3.9μH
Test Frequency 7.9MHz
DC Resistance (DCR) 1.5Ohm Max
Max DC Current 200mA
Frequency - Self Resonant 36MHz
Inductor Application RF INDUCTOR
Q @ Freq 40 @ 7.9MHz
Quality Factor-Min (at L-nom) 40
DC Current 200mA
Dimensions
Diameter 2.54mm
Compliance
RoHS Status ROHS3 Compliant
