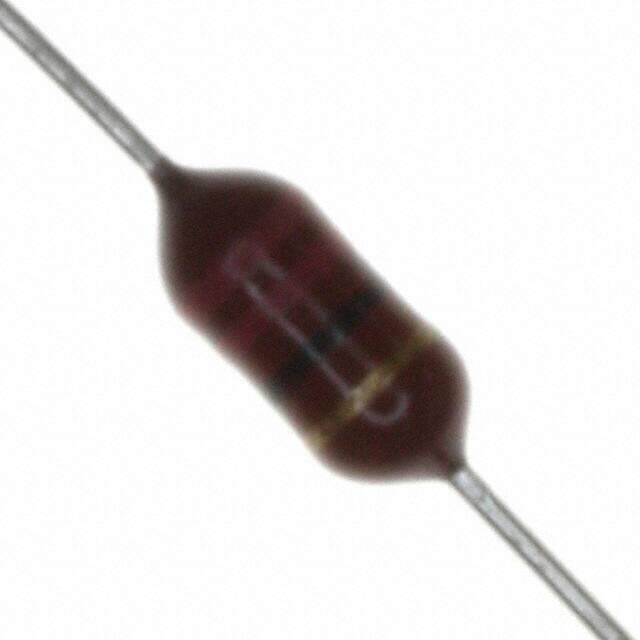

78F220J image
Favorite
78F220J image
Favorite

78F220J

Bourns Inc.
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 78F Axial 0.110Diax0.280L 2.79mmx7.11mm 22muH
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.19813
≥1 USD $0.19813
≥200 USD $0.079063
≥500 USD $0.07641
≥1000 USD $0.075111
Inventory: 4546
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Diameter 2.79mm

Technical

Q Factor 50
Quality Factor-Min (at L-nom) 50
Q @ Freq 50 @ 2.5MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 13MHz
Max DC Current 140mA
DC Resistance (DCR) 1.2Ohm Max
Test Frequency 2.5MHz
Inductance 22μH
Lead Length 25.4mm
Current Rating 140mA
Construction Bobbin Core
Number of Functions 1
Shielding NO
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.110Diax0.280L 2.79mmx7.11mm
Series 78F
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
