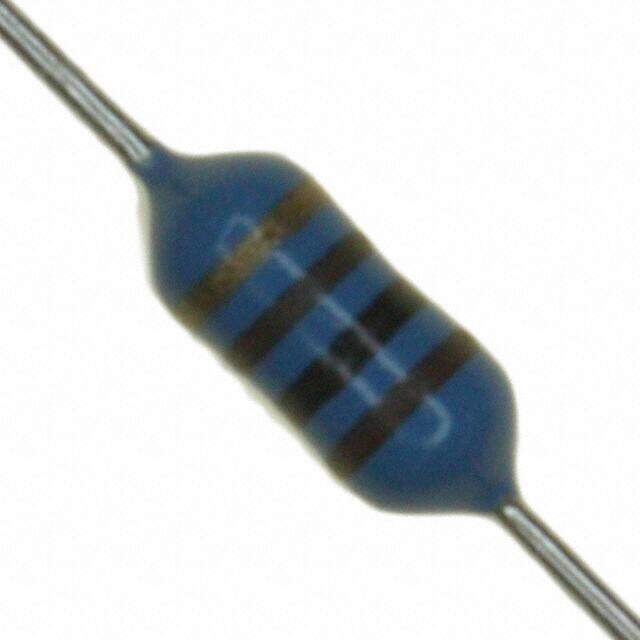

78F101J
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
78F Axial 0.110Diax0.280L 2.79mmx7.11mm 100muH
PDF
/
Inventory: 1176
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Diameter 2.79mm
Technical
Q Factor 60
Quality Factor-Min (at L-nom) 60
Q @ Freq 60 @ 2.5MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 5.5MHz
Max DC Current 125mA
DC Resistance (DCR) 3.5Ohm Max
Test Frequency 2.5MHz
Inductance 100μH
Lead Length 25.4mm
Current Rating 125mA
Construction Bobbin Core
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±5%
Size / Dimension 0.110Diax0.280L 2.79mmx7.11mm
Series 78F
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
