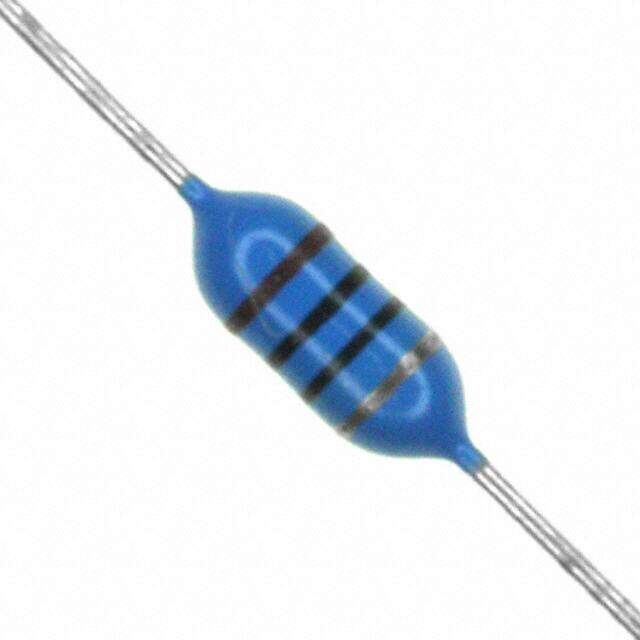

78F100J
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
78F Axial 0.110Diax0.280L 2.79mmx7.11mm 10muH
PDF
/
Inventory: 1811
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2005
Series 78F
Size / Dimension 0.110Diax0.280L 2.79mmx7.11mm
Tolerance ±5%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Resistance 720mOhm
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Bobbin Core
Current Rating 130mA
Lead Length 25.4mm
Inductance 10μH
Test Frequency 7.9MHz
DC Resistance (DCR) 720mOhm Max
Max DC Current 130mA
Frequency - Self Resonant 22MHz
Inductor Application RF INDUCTOR
Q @ Freq 40 @ 7.9MHz
Quality Factor-Min (at L-nom) 40
Q Factor 40
Dimensions
Diameter 2.79mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
