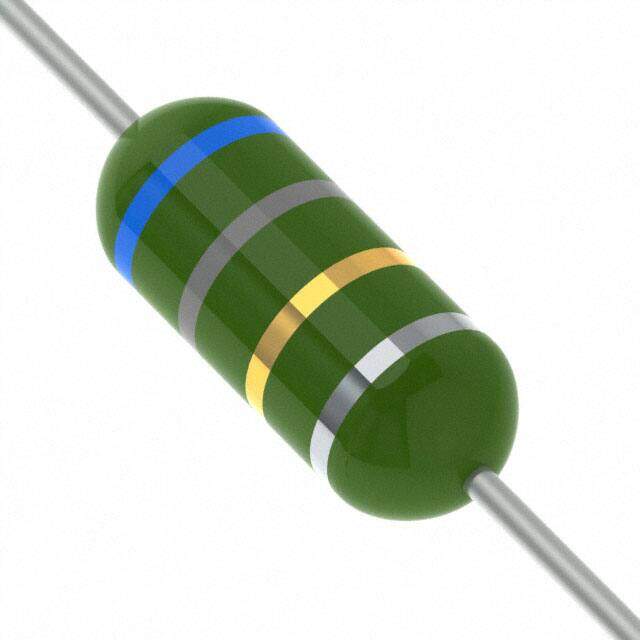

77F6R8K-RC
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF CHOKES, 6.8UH, 10%, 68MHZ, AXIAL
PDF
/
Inventory: 9146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case Axial
Number of Pins 2
Material - Core Ferrite
Technical
Packaging Tape & Reel
Published 2006
Tolerance 10%
Part Status Active
Termination Axial
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Inductance 6.8 μH
Test Frequency 7.9MHz
Max DC Current 550mA
Frequency - Self Resonant 68MHz
Q Factor 75
DC Resistance (DCR) - Parallel 500mOhm
Inductance Tolerance 10%
Dimensions
Diameter 3.99mm
Length 10.41mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
