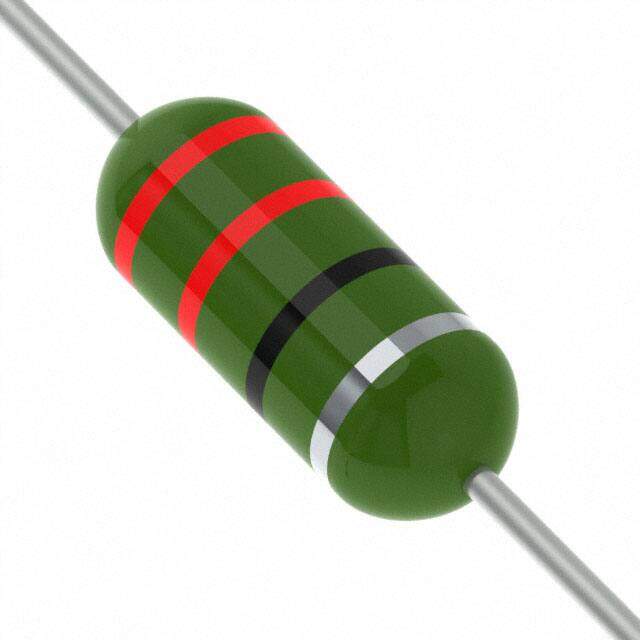

77F220J-TR-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
77F Axial 0.157Diax0.410L 3.99mmx10.41mm 22muH
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.19184
≥100 USD $0.177408
≥500 USD $0.162624
≥1000 USD $0.143352
≥3000 USD $0.138899
Inventory: 1164
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 10.414mm
Technical
Inductance Frequency - Test 2.52MHz
Q @ Freq 60 @ 2.52MHz
Frequency - Self Resonant 9.9MHz
DC Resistance (DCR) 900mOhm Max
Test Frequency 2.52MHz
Inductance 22μH
Base Part Number 77F
Current Rating 410mA
Shielding Unshielded
Current Rating (Amps) 410mA
Composition Wirewound
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.157Diax0.410L 3.99mmx10.41mm
Series 77F
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
