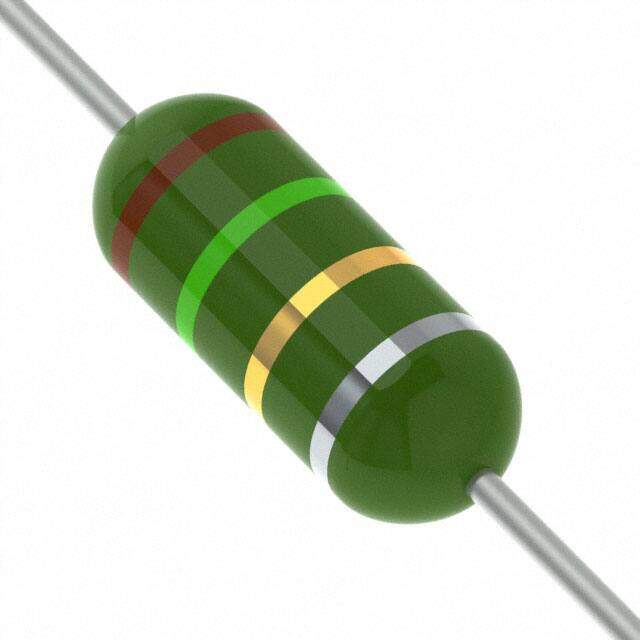

77F1R5K-TR-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
77F Axial 0.157Diax0.410L 3.99mmx10.41mm 1.5muH
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.19184
≥100 USD $0.177408
≥500 USD $0.162624
≥1000 USD $0.143352
≥3000 USD $0.138899
Inventory: 1166
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Diameter 3.99mm
Technical
Q Factor 50
Quality Factor-Min (at L-nom) 50
Q @ Freq 50 @ 7.96MHz
Inductor Application DC-DC CONVERTER
Frequency - Self Resonant 131MHz
Max DC Current 830mA
DC Resistance (DCR) 200mOhm Max
Test Frequency 7.96MHz
Inductance 1.5μH
Lead Length 25.4mm
Current Rating 830mA
Construction Conformal Coated
Number of Functions 1
Shielding NO
Packing Method TR, 14 INCH
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.157Diax0.410L 3.99mmx10.41mm
Series 77F
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Shape/Size Description TUBULAR PACKAGE
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
Contact Plating Copper, Silver, Tin
Supply Chain
Factory Lead Time 16 Weeks
