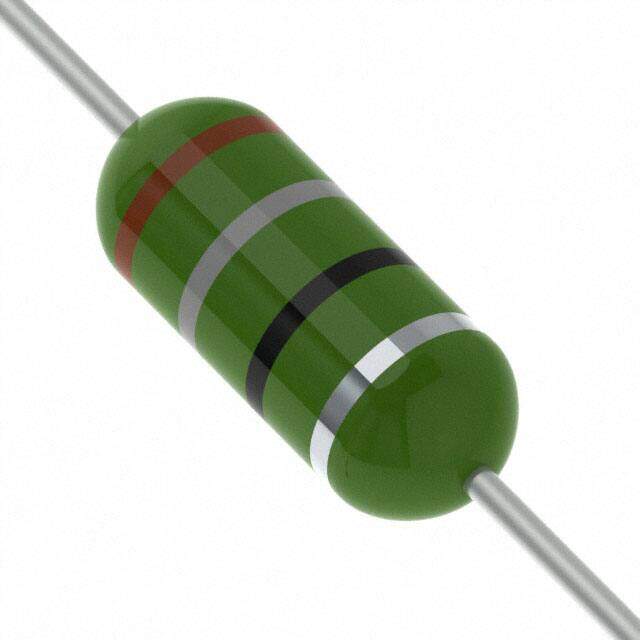

77F180K-TR-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
77F Axial 0.157Diax0.410L 3.99mmx10.41mm 18muH
PDF
/
Buying Options
Total Price: USD $0.1
Unit Price: USD $0.101436
≥1 USD $0.101436
≥200 USD $0.039255
≥500 USD $0.037875
≥1000 USD $0.037193
Inventory: 1078
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2012
Series 77F
Size / Dimension 0.157Diax0.410L 3.99mmx10.41mm
Tolerance ±10%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Resistance 800mOhm
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8504.50.80.00
Packing Method TR, 14 INCH
Shielding NO
Number of Functions 1
Construction Conformal Coated
Current Rating 430mA
Military Standard Not
Lead Length 25.4mm
Inductance 18μH
Test Frequency 2.52MHz
DC Resistance (DCR) 800mOhm Max
Max DC Current 430mA
Frequency - Self Resonant 14MHz
Inductor Application DC-DC CONVERTER
Q @ Freq 60 @ 2.52MHz
Quality Factor-Min (at L-nom) 60
DC Current 430mA
Dimensions
Diameter 3.99mm
Compliance
RoHS Status ROHS3 Compliant
