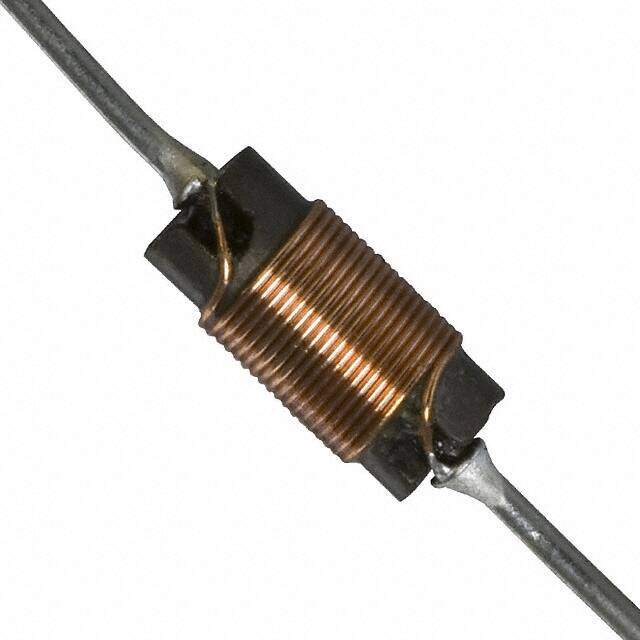

70F226AI
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
70F Axial 0.160Diax0.250L 4.06mmx6.35mm 2.2muH
PDF
/
Inventory: 1098
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Iron
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2005
Series 70F
Size / Dimension 0.160Diax0.250L 4.06mmx6.35mm
Tolerance ±10%
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 1.132A
Inductance 2.2μH
Test Frequency 7.9MHz
DC Resistance (DCR) 156mOhm Max
Max DC Current 1.132A
Frequency - Self Resonant 87MHz
Q @ Freq 43 @ 7.9MHz
Q Factor 43
Dimensions
Diameter 4.064mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
