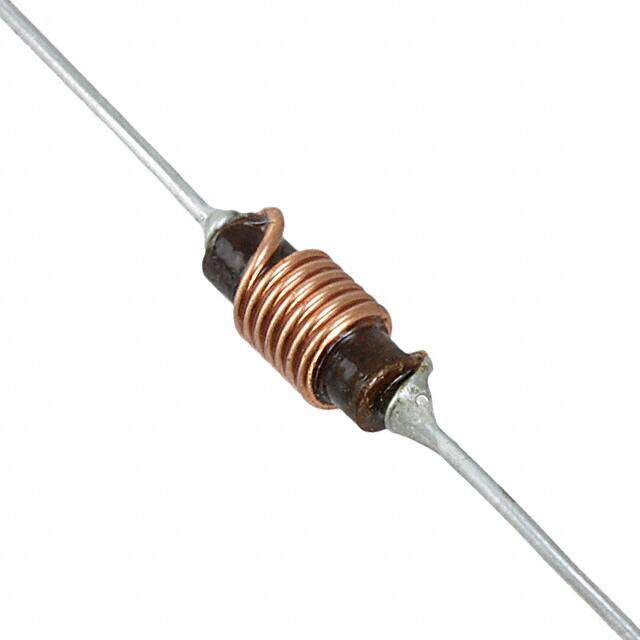

70F107AP-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
70F Axial 0.150Diax0.310L 3.81mmx7.87mm 100nH
PDF
/
Inventory: 7632
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Phenolic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2007
Series 70F
Size / Dimension 0.150Diax0.310L 3.81mmx7.87mm
Tolerance ±20%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 3.922A
Military Standard Not
Inductance 100nH
Test Frequency 25MHz
DC Resistance (DCR) 130mOhm Max
Max DC Current 3.922A
Frequency - Self Resonant 600MHz
Q @ Freq 49 @ 25MHz
Q Factor 49
Inductance Tolerance 20%
DC Current 3.922A
Dimensions
Diameter 3.81mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
