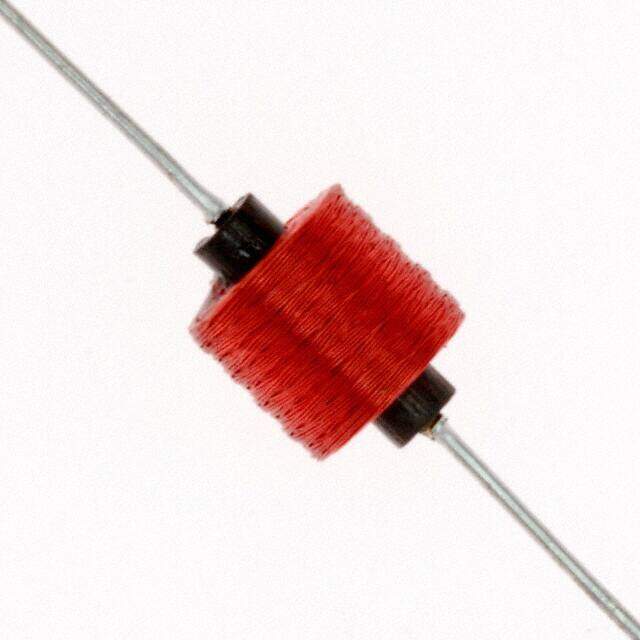

70F102AI-RC image
Favorite
70F102AI-RC image
Favorite

70F102AI-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 70F Axial 0.330Diax0.380L 8.38mmx9.65mm 10mH
PDF
/
Inventory: 1646
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Iron

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2002
Series 70F
Size / Dimension 0.330Diax0.380L 8.38mmx9.65mm
Tolerance ±5%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 38mA
Military Standard Not
Inductance 10mH
Test Frequency 250kHz
DC Resistance (DCR) 101Ohm Max
Max DC Current 38mA
Frequency - Self Resonant 520kHz
Q @ Freq 41 @ 250kHz
Q Factor 41
Inductance Tolerance 5%
DC Current 38mA

Dimensions

Diameter 8.382mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
