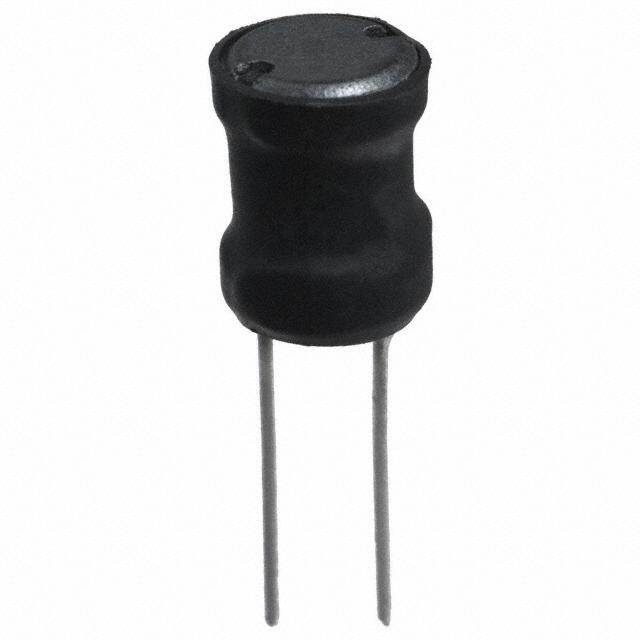

6000-270K-RC
RoHS
/
Package /
Category Inductors, Coils, Chokes / Fixed Inductors
Description
27muH 10% 10%
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8272
≥1 USD $0.8272
≥10 USD $0.69696
≥100 USD $0.494472
≥500 USD $0.393043
≥1000 USD $0.367682
≥3000 USD $0.355001
Inventory: 87
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Number of Pins 2
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Packaging Bulk
Published 2007
Tolerance 10%
JESD-609 Code e1
Part Status Discontinued
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Composition Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Construction Bobbin Core
Current Rating 2.22A
Military Standard Not
Lead Pitch 5mm
Inductance 27 μH
Test Frequency 2.52MHz
Max DC Current 2.22A
Frequency - Self Resonant 8.5MHz
Inductor Application RF INDUCTOR
Lead/Base Style Radial
Quality Factor-Min (at L-nom) 40
Inductor Type GENERAL PURPOSE INDUCTOR
Q Factor 40
DC Resistance (DCR) - Parallel 80mOhm
Inductance Tolerance 10%
Inductance-Nom (L) 27 μH
DC Current 2.22A
Dimensions
Diameter 9mm
Height Seated (Max) 12.192mm
Length 12.2mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
