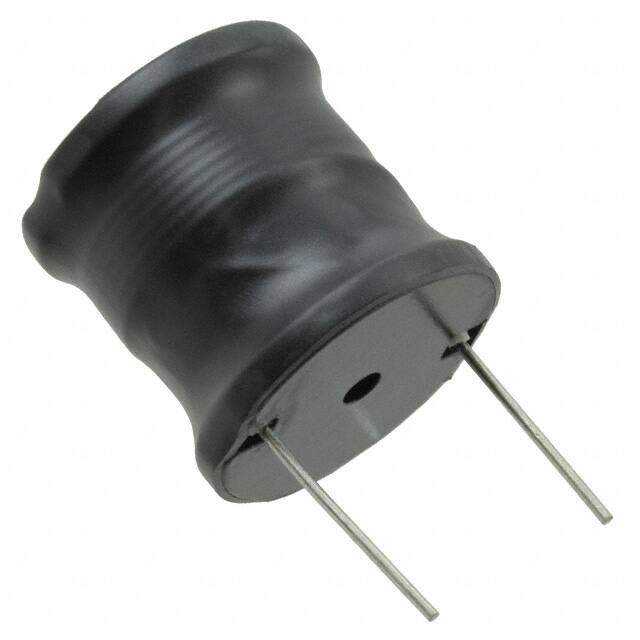

6000-102K

Bourns Inc.
RoHS
/
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description 6000 Radial Vertical Cylinder 0.354Dia 9.00mm 1mH
PDF
/
Inventory: 2061
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Diameter 9mm
Height Seated (Max) 0.480 12.20mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead

Technical

Q Factor 20
Quality Factor-Min (at L-nom) 20
Q @ Freq 20 @ 252kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 1.3MHz
Max DC Current 510mA
DC Resistance (DCR) 2.9Ohm Max
Test Frequency 252kHz
Inductance 1mH
Lead Length 10mm
Lead Pitch 5mm
Current Rating 510mA
Construction Bobbin Core
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Tolerance ±10%
Size / Dimension 0.354Dia 9.00mm
Series 6000
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
