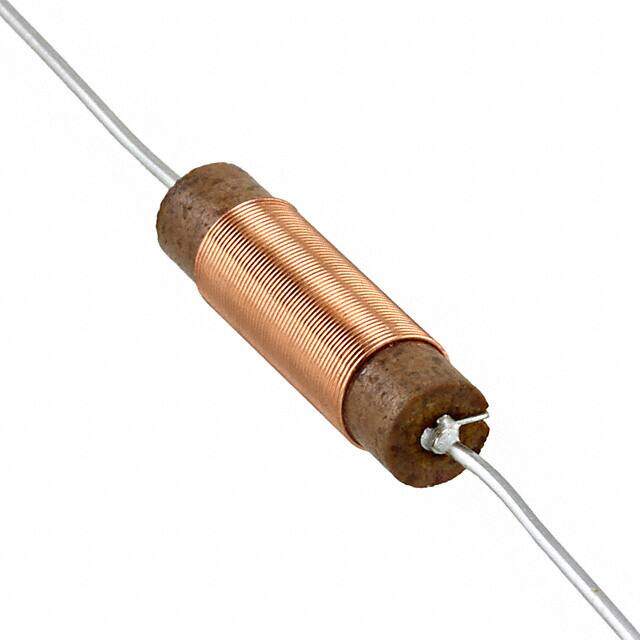

4604-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
4600 Axial 0.270Diax0.750L 6.86mmx19.05mm 1.5muH
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.921113
≥1 USD $1.921113
≥10 USD $1.812376
≥100 USD $1.709786
≥500 USD $1.613001
≥1000 USD $1.521707
Inventory: 1086
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Phenolic
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2009
Series 4600
Size / Dimension 0.270Diax0.750L 6.86mmx19.05mm
Tolerance ±10%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Varnish Coating
Current Rating 1.8A
Military Standard Not
Inductance 1.5μH
Test Frequency 7.96MHz
DC Resistance (DCR) 93mOhm Max
Max DC Current 1.8A
Frequency - Self Resonant 149MHz
Inductor Application RF INDUCTOR
Q @ Freq 58 @ 7.96MHz
Quality Factor-Min (at L-nom) 58
Q Factor 58
Inductance Tolerance 10%
DC Current 1.8A
Dimensions
Diameter 6.86mm
Compliance
RoHS Status ROHS3 Compliant
