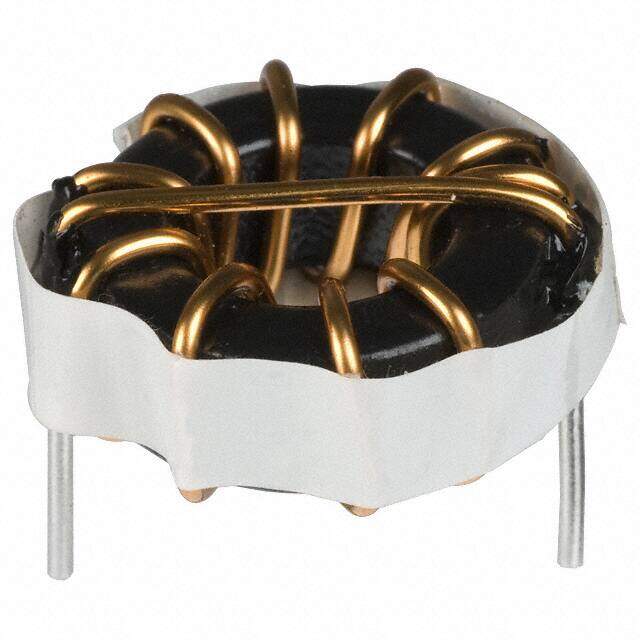

2200LL-120-V-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2200LL Radial Vertical (Open) 1.100Diax0.550W 27.94mmx13.97mm 12muH
PDF
/
Inventory: 3752
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Terminal Shape WIRE
Material - Core Sendust
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2004
Series 2200LL
Size / Dimension 1.100Diax0.550W 27.94mmx13.97mm
Tolerance ±15%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Toroidal
Shielding NO
Number of Functions 1
Current Rating 14.2A
Lead Length 12.7mm
Inductance 12μH
Test Frequency 1kHz
DC Resistance (DCR) 6mOhm Max
Inductor Application HIGH CURRENT INDUCTOR
Inductance Frequency - Test 1kHz
Dimensions
Diameter 27.9mm
Height 27.9mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
