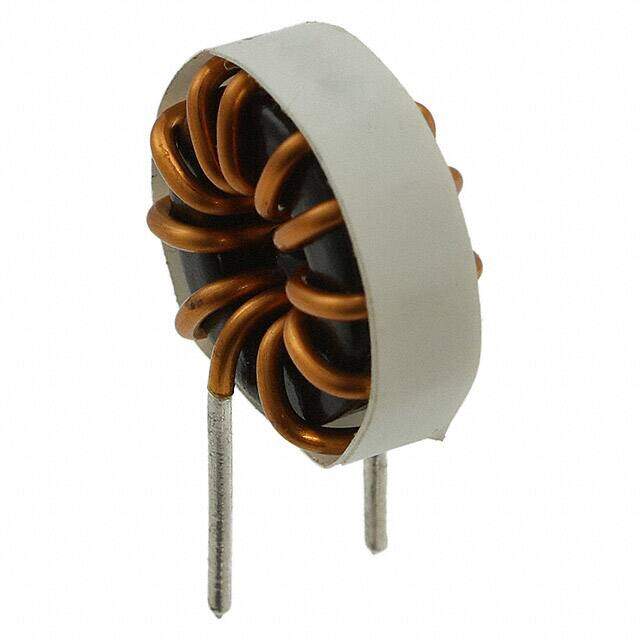

2100LL-221-V-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2100LL Radial Vertical (Open) 0.860Diax0.450W 21.84mmx11.43mm 220muH
PDF
/
Inventory: 5812
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 21.8mm
Diameter 21.8mm
Technical
Lead/Base Style Radial
Inductor Application HIGH CURRENT INDUCTOR
Max DC Current 3.5A
DC Resistance (DCR) 53mOhm Max
Test Frequency 1kHz
Inductance 220μH
Lead Spacing 10.16mm
Lead Length 12.7mm
Current Rating 3.5A
Construction Vertical Mount
Depth 11.43mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Type Toroidal
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±15%
Size / Dimension 0.860Diax0.450W 21.84mmx11.43mm
Series 2100LL
Published 2004
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Sendust
Terminal Shape WIRE
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole
