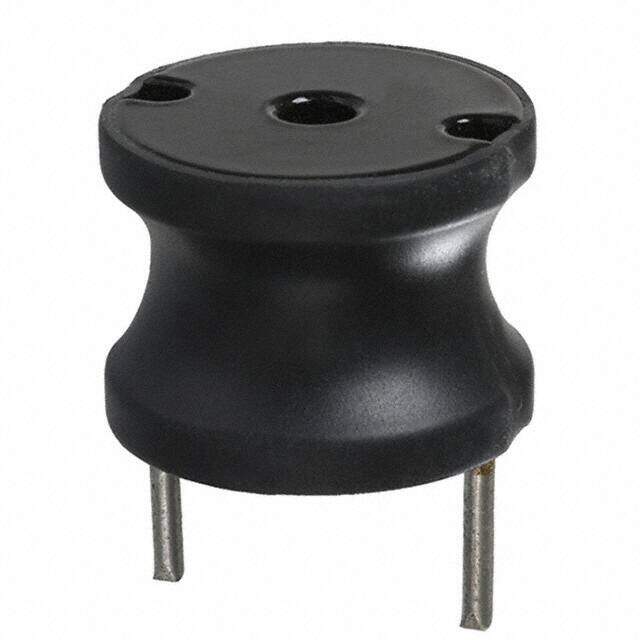

1130-561K-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1130 Radial Vertical Cylinder 1.100Dia 27.94mm 560muH
PDF
/
Buying Options
Total Price: USD $7.81
Unit Price: USD $7.8056
≥1 USD $7.8056
≥10 USD $6.73024
≥100 USD $6.243072
≥500 USD $6.047888
≥1000 USD $5.7552
≥3000 USD $5.657661
Inventory: 470
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series 1130
Size / Dimension 1.100Dia 27.94mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Resistance 205mOhm
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Bobbin Core
Current Rating 4A
Military Standard Not
Lead Pitch 19.56mm
Lead Length 12.7mm
Lead Spacing 19.558mm
Inductance 560μH
Test Frequency 1kHz
DC Resistance (DCR) 205mOhm Max
Max DC Current 4A
Inductor Application HIGH CURRENT INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 10%
DC Current 4A
Dimensions
Diameter 27.94mm
Height 21.34mm
Height Seated (Max) 0.840 21.34mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
