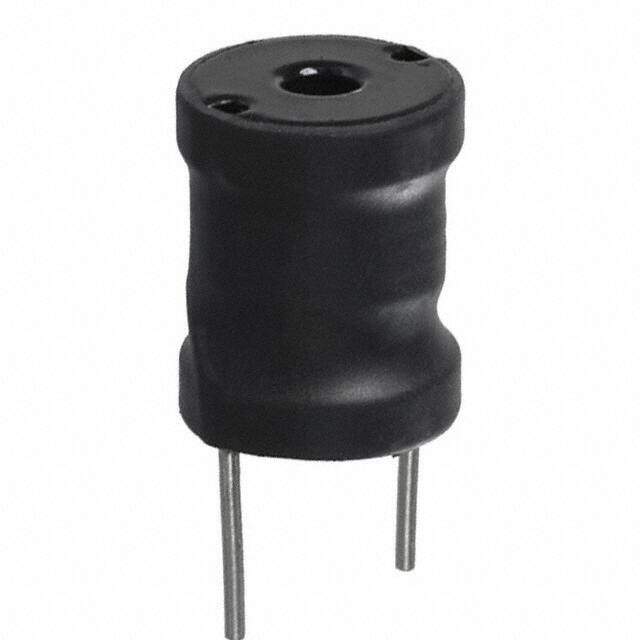

1110-561K
RoHS
/
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1110 Radial Vertical Cylinder 0.660Dia 16.76mm 560muH
PDF
/
Inventory: 9523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.840 21.34mm
Diameter 16.764mm
Technical
Inductor Application RF INDUCTOR
Max DC Current 800mA
DC Resistance (DCR) 696mOhm Max
Test Frequency 1kHz
Inductance 560μH
Lead Length 12.7mm
Lead Pitch 11.938mm
Current Rating 800mA
Construction Epoxy Coated
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Tolerance ±10%
Size / Dimension 0.660Dia 16.76mm
Series 1110
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
