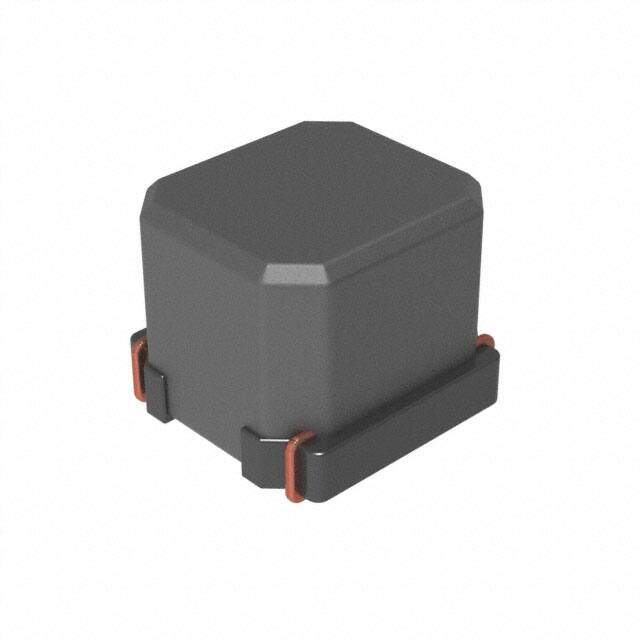

LMLP05D5M100CTAS
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LMLP Nonstandard 0.197Lx0.197W 5.00mmx5.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.579606
≥1 USD $0.579606
≥10 USD $0.546805
≥100 USD $0.515853
≥500 USD $0.486647
≥1000 USD $0.459101
Inventory: 1198
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series LMLP
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 2.1A
Shielding Shielded
Inductance 10μH
DC Resistance (DCR) 56mOhm
Inductance Frequency - Test 100kHz
Current - Saturation 2.3A
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status ROHS3 Compliant
