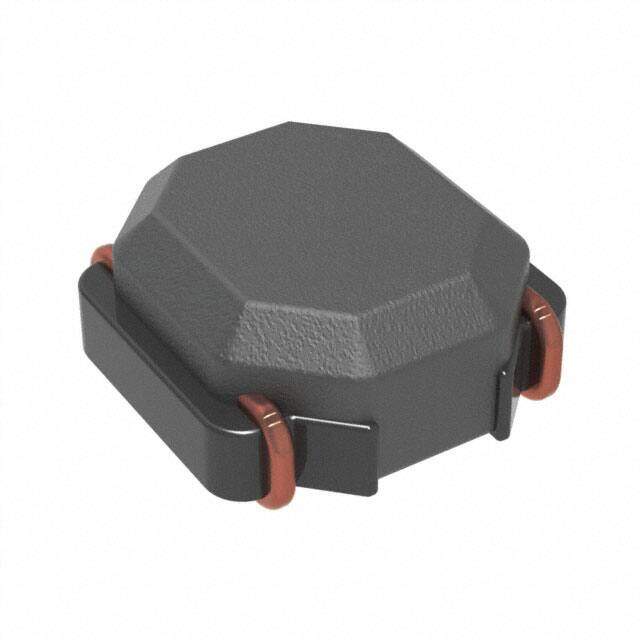

LMLP0202M150CTAR
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active 8504.50.80.00 Tape & Reel (TR) fixed air core inductor -40C~125C 100kHz 1.02Ohm 15muH
PDF
/
Inventory: 1759
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series LMLP
Size / Dimension 0.094Lx0.094W 2.40mmx2.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 370mA
Shielding Shielded
Inductance 15μH
DC Resistance (DCR) 1.02Ohm
Inductance Frequency - Test 100kHz
Current - Saturation 470mA
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
