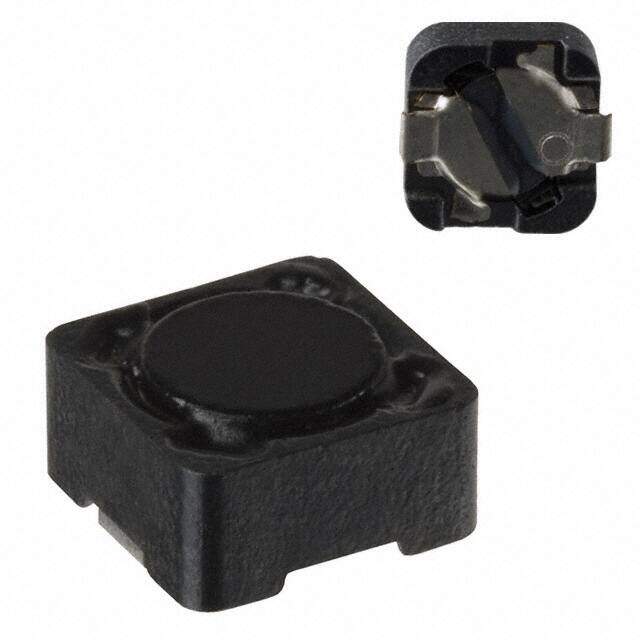

SPD73R-334M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SPD73R Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 330muH
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.9952
≥1 USD $3.9952
≥10 USD $3.344
≥100 USD $3.0536
≥500 USD $2.617296
≥1000 USD $2.399232
≥3000 USD $2.326509
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series SPD73R
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 7.8mm
Construction Rectangular
Current Rating 500mA
Inductance 330μH
Test Frequency 1kHz
DC Resistance (DCR) 2.62Ohm Max
Max DC Current 500mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 2929
Dimensions
Height 3.9mm
Height Seated (Max) 0.154 3.90mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
