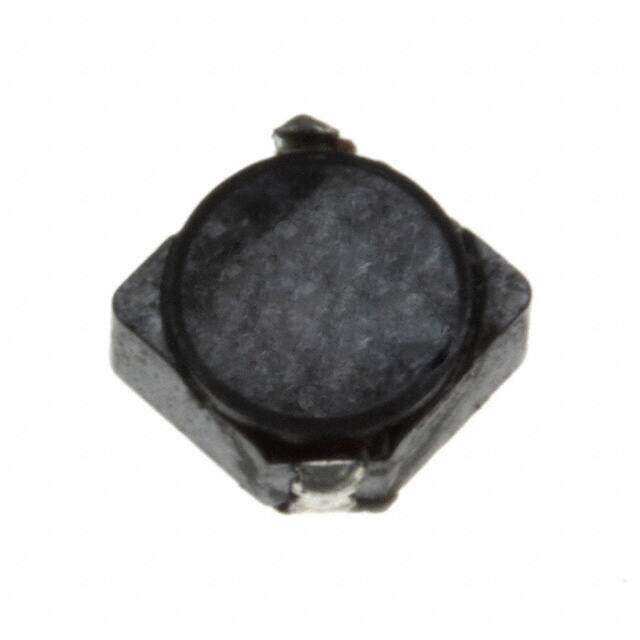

SPD42R-472M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SPD42R Nonstandard 0.185Lx0.185W 4.70mmx4.70mm 4.7muH
PDF
/
Buying Options
Total Price: USD $3.82
Unit Price: USD $3.8192
≥1 USD $3.8192
≥10 USD $3.19704
≥100 USD $2.919136
≥500 USD $2.502192
≥1000 USD $2.293632
Inventory: 309
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.115 2.92mm
Height 2.92mm
Technical
Case/Size Code 1919
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 55MHz
Max DC Current 900mA
DC Resistance (DCR) 45mOhm Max
Test Frequency 100kHz
Inductance 4.7μH
Current Rating 900mA
Construction RECTANGULAR PACKAGE
Number of Functions 1
Shielding YES
Packing Method TR, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.185Lx0.185W 4.70mmx4.70mm
Series SPD42R
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 850mg
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
