SPD127R-104M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SPD127R Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 100muH
PDF
/
Buying Options
Total Price: USD $4.55
Unit Price: USD $4.5496
≥1 USD $4.5496
≥10 USD $3.68632
≥100 USD $3.276416
≥500 USD $3.094432
≥1000 USD $2.866952
≥3000 USD $2.821421
Inventory: 1171
Minimum: 1
-
+
Technical Details
Technical
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 12.8mm
Construction Rectangular
Current Rating 1.7A
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 220mOhm Max
Max DC Current 1.7A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 4747
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series SPD127R
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

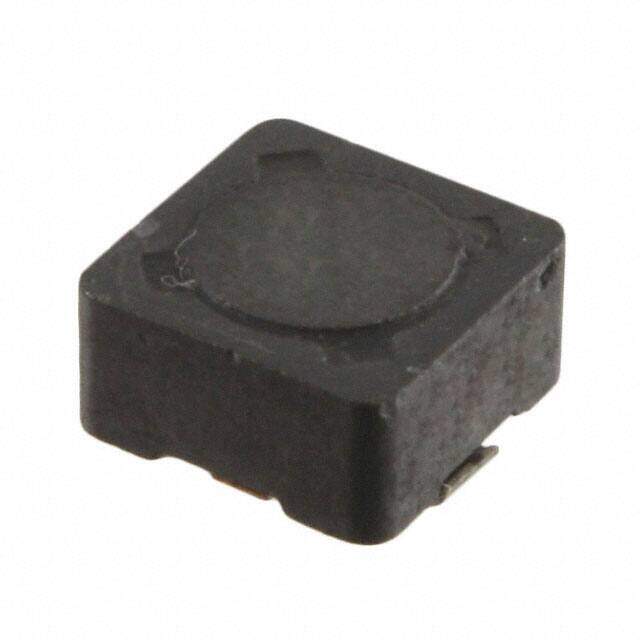

Alternative Model
